Cable Adapters

Connecting your existing controller to the PyroNext field layer.

Connect includes a built-in 36-channel Trigger Capture board that translates cue outputs from your existing firing system into clean, galvanically isolated trigger inputs for Connect’s routing engine. No external adapter box. No additional power. Just the right cable harness for your controller.

How it works

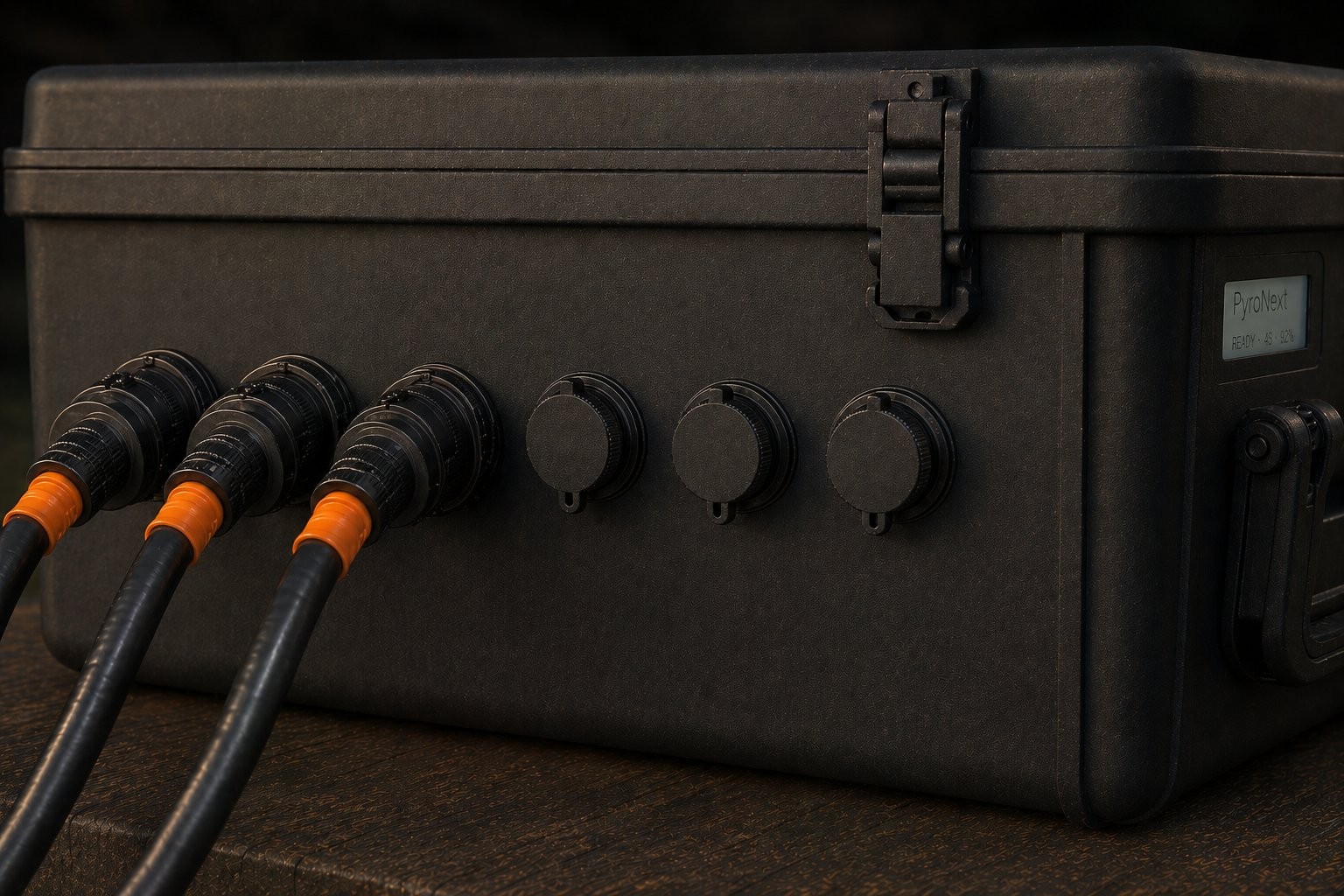

A field adapter harness plugs into Connect’s IP-rated panel connectors on one end, and into your controller on the other. Inside Connect, the Trigger Capture board handles polarity, isolation, and threshold detection—then begins routing cues to your IQ Slats.

Harness options

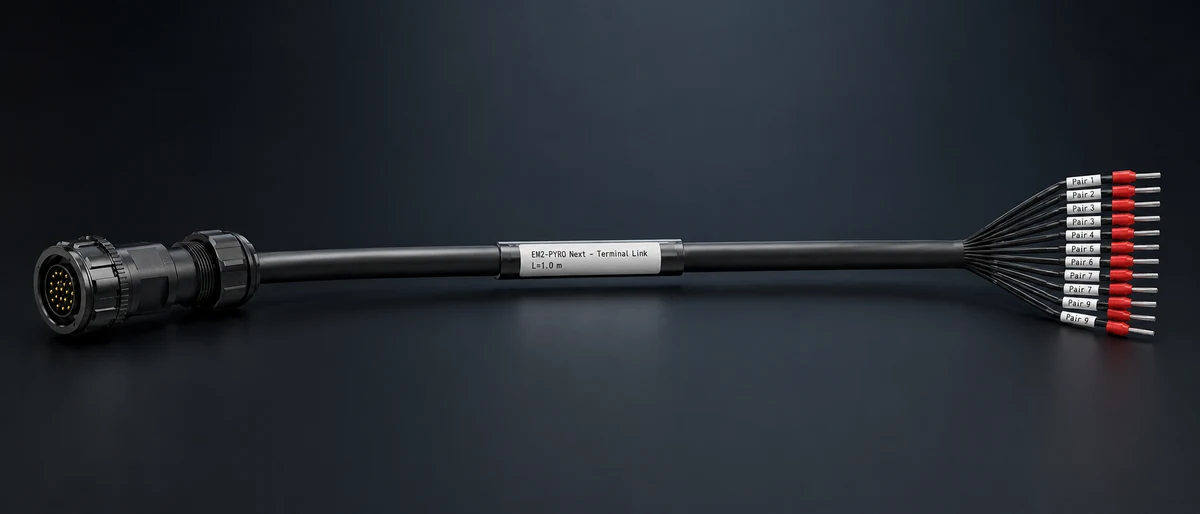

• Bare-wire breakout: Terminates in individual ferrule-terminated wire ends. Compatible with any firing system—just wire to your controller’s cue output terminals.

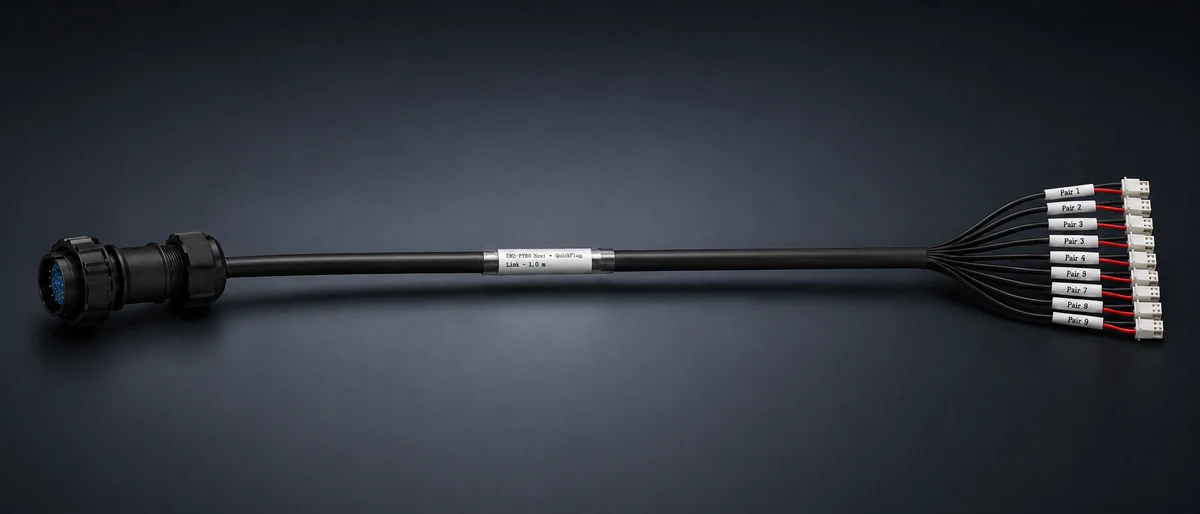

• QuickPlug: Terminates in 2-pin keyed connectors for direct plug-in to Ignite-style systems.
• COBRA-compatible: Terminates for direct connection to COBRA cue outputs.
• Custom: Additional harness variants available for other systems—contact us.

Key specs

• Channels: 36 cue inputs (4 connectors × 9 channels each)
• Input type: Two-wire floating pair per cue—polarity-agnostic
• Isolation: Galvanically isolated—host system firing domain fully separated from Connect logic domain
• Continuity safety: Detection circuit distinguishes between continuity probe pulses and fire commands—host controller continuity checks never cause false triggers
• Connector: IP-rated circular connectors on the Connect side — field-latching, rated for outdoor use

Once trigger signals reach Connect, all routing, continuity tracking, one-to-many fan-out, and firing voltage management are handled entirely within the PyroNext field layer.
